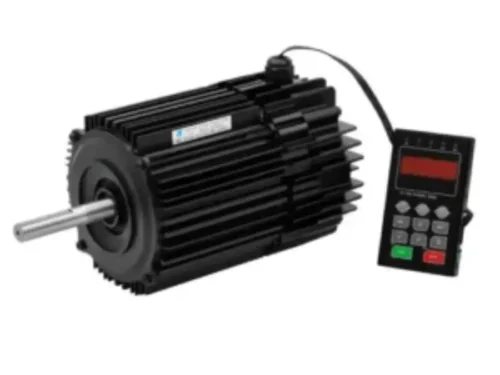

EC80 Single Phase
- The EC80 represents the next generation of fan motor technology, combining high efficiency, sustainability, and precise control. Utilizing an advanced permanent magnet design with an integrated controller, it consumes significantly less energy than traditional AC fan motors, delivering lower operating costs and a reduced carbon footprint.
- With RS485/MODBUS remote control and 0–10V analog input, the EC80 adapts seamlessly to system demands, ensuring optimal airflow while minimizing energy waste. Its compact aluminum frame, long service life, and built-in protection features make it a reliable and smart investment for modern ventilation solutions.
- Internal Controller: Integrated for smart and efficient operation.
- Speed Control: 0–10V input or RS485/MODBUS remote control technology.
- Protection: Overvoltage, undervoltage, overcurrent, and phase loss protection.
- Insulation Class: F
- Efficiency: IE4 / IE5
- Frame Material: Aluminum
- Power Range: 0.37 – 1.1 kW
- Poles: 4 and 6 poles
- Frame Size: 80
- IP Rating: IP54 / IP55
- Certification: CE, CCC
- All EC80 motors are factory-ordered to ensure quality, configuration accuracy, and compliance with project specifications.

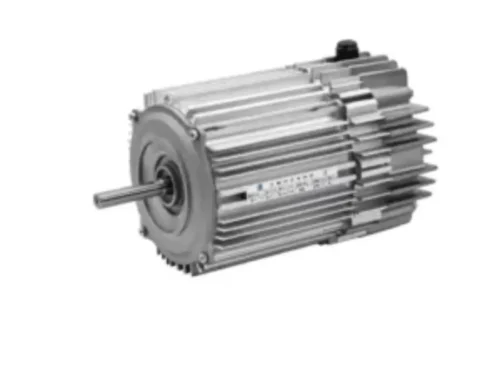

EC80 Three Phase
EC80 Three-Phase EC Motor
- The EC 80 represents the next generation of fan technology, delivering high efficiency and sustainable performance. With an advanced permanent magnet design and integrated controller, it consumes significantly less energy than traditional AC motors, reducing both operating costs and carbon footprint.
- Featuring precise control via RS485/MODBUS, the EC 80 adapts seamlessly to system demands, providing optimal airflow while minimizing energy waste. Its compact design, long service life, and built-in protection make it a reliable and smart choice for modern ventilation systems.
- Integrated Controller: Built-in motor control for seamless operation.
- Speed Control: 0–10V control and RS485/MODBUS remote capability.
- Protection: Overvoltage, undervoltage, overcurrent, and phase loss.
- Insulation Class: F
- Efficiency: IE4 / IE5
- Frame Material: Aluminium
- Power Range: 0.37–4 kW
- Poles: 2, 4, 6
- Frame Size: 80
- Certification: CE, CCC
- Ingress Protection: IP54 / IP55

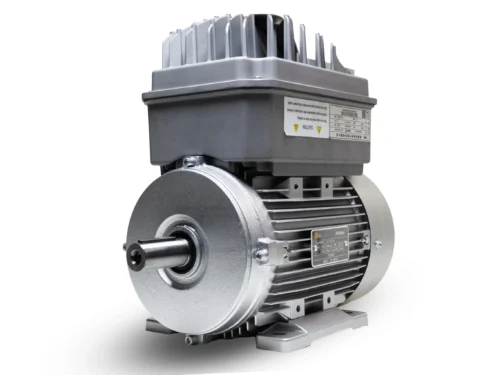

PM Series - Permanent Magnet Synchronous Motors (IEC Dimension)
- Next-Generation Efficiency and Performance for Industrial Applications
- Perdurus PM Series Motors represent the forefront of motor technology, delivering super-premium efficiency (IE4 / IE5) with a compact, robust design. These motors are engineered for industrial applications requiring high performance, reliability, and energy savings.
- Super-Premium Efficiency: Achieve IE4 / IE5 levels, reducing energy consumption and operating costs.
- Compact and Robust Design: Space-efficient motor structure ideal for modern industrial installations.
- IEC Standard Compliance: All motors are designed and dimensioned according to IEC standards for easy integration.
- High Protection Class: IP54 / IP55 rating ensures reliable operation in harsh environments.
- Thermal Reliability: Insulation class F for long-lasting performance under heavy loads.
- Wide Power Range: Available up to 37 kW and frame size 200, covering most industrial requirements.
- Applications
- Ideal for:
- Fan, pump, and blower systems
- Industrial automation
- Material handling equipment
- HVAC systems
- Any application where high efficiency and reliability are critical
- Installation Dimensions
- The PM Series is available in IMB3, IMB5, and IMB14 mounting configurations with full IEC-compliant dimensions. Our detailed drawings ensure easy integration into your existing systems.
- (Include a simplified diagram similar to the uploaded image, highlighting IMB3, IMB5, and IMB14)
- Why Choose Perdurus PM Motors?
- Energy Savings: Lower electricity bills and carbon footprint.
- Durable Performance: Built to operate reliably in tough industrial environments.
- Easy Integration: Standardized dimensions allow seamless replacement or new installation.
- Advanced Control Options: Can be paired with modern drives for precision control.
