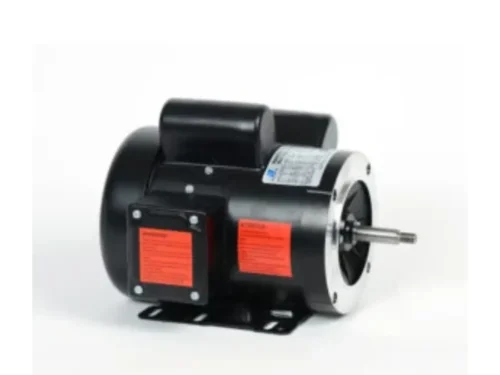

NEMA Motor

PERNema Motors from Perdurus are engineered to meet the rigorous demands of modern industrial applications, delivering reliable performance across a wide range of machinery. Built to NEMA standards, these motors are available in both single-phase and three-phase configurations, making them ideal for pumps, conveyors, and other equipment requiring dependable, continuous power. Designed for durability, efficiency, and smooth operation, PERNema motors offer the versatility and strength to support diverse Australian industrial environments.   Motor Features • Frame: NEMA-compliant aluminium or rolled steel housing, available from NEMA 56C up to 250 frame sizes. • Mounting: Flexible configurations including foot-mounted, C-face, or flange-mounted designs with removable feet for easy installation. • Duty: S1 / S3 duty, supporting continuous or intermittent operation as needed. • Configuration: Compatible with NEMA shaft and flange standards, optimized for various industrial applications. • Output Range: Up to 3 kW (4 hp), catering to a broad spectrum of power requirements. • Voltage: 115–230V for single-phase, and 208–460V for three-phase, with rated currents tailored to specific loads. • IP Rating: IP54, offering protection against dust and water splashes for reliable operation in challenging environments. • Insulation Rating: Class B / F, ensuring dependable performance under varying temperature conditions. • Cooling Method: IC411, with Vacuum Pressure Impregnated (VPI) windings for enhanced durability and longevity. • Customization: Available to meet specific application needs, including torque, size, and phase adjustments, with NEMA certification compliance.   PERNema motors deliver robust, customizable power solutions for Australian industries. Contact us for tailored support or technical assistance.
Quick View
Quick View

2-Speed Motors

Perdurus CF series motors are designed for coffee grinder machine, the increased starting torque ensures the smooth start-up in continuous operation.The motors are reliable, durable, high efficient, flexible and safe, which are suitable for household and commercial use coffee grinder machines.OEM/ODM motors are available to meet every demand of different applications.

Product Range

  • Series Name :CF
  • Standard:
  • Phase:Three Phase/Single Phase
  • Material of Frame:Aluminum / Rolled Steel / No Frame
  • Power Range:0.06-37kW
  • Speed:750-3600rpm
  • Poles:2 / 4 / 6 / 8 poles
  • IP Address:Customization
  • Insulation Class:F
Quick View
Quick View

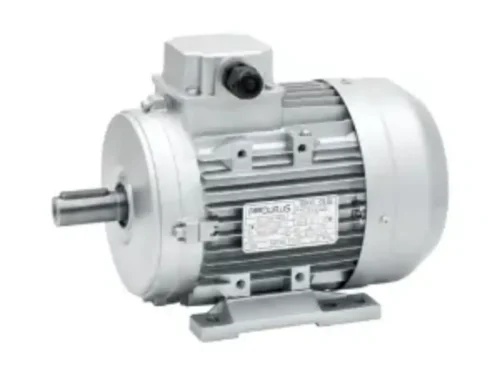

Air Compressor Motor

PERComp Motors from Perdurus are engineered specifically for single-phase air compressor applications, delivering dependable performance in both industrial and commercial settings. As part of the CSCR series, these motors are equipped with a starting device, start capacitor, running capacitor, and single-phase AC supply—ensuring high starting torque and smooth, reliable startups. Designed for air compression systems that demand consistent power, they comply with Australian and international standards for efficiency, reliability, and durability. Motor Features
  • Frame: Rolled steel housing, supporting outputs from 1.1 kW (1.5 hp) to 2.5 kW (3 hp).
  • Poles: 2 poles, with rated speeds of 2800 rpm (50 Hz) or 3400 rpm (60 Hz).
  • Mounting: Robust design with junction box on the top side and rigid feet (welded on) for secure installation.
  • Voltage: 240V (50 Hz) or 110V/220V (60 Hz), with rated currents from 6.9A to 12.5A.
  • Insulation Rating: Class F, ensuring reliable operation under elevated temperatures.
  • Duty: S1 continuous duty, designed for prolonged compressor operation.
  • Enclosure: Rolled steel construction with IC411 cooling method, featuring Vacuum Pressure Impregnated (VPI) windings for enhanced durability.
  • Dimensions: Compact design with installation dimensions (e.g., D 140 mm, L 305 mm), tailored for air compressor integration.
  • Customization: Available to meet specific compressor requirements, including torque and size adjustments.
PERComp motors provide dependable, high-torque solutions for Australian industries. Contact us for custom configurations or technical support.
Quick View
Quick View

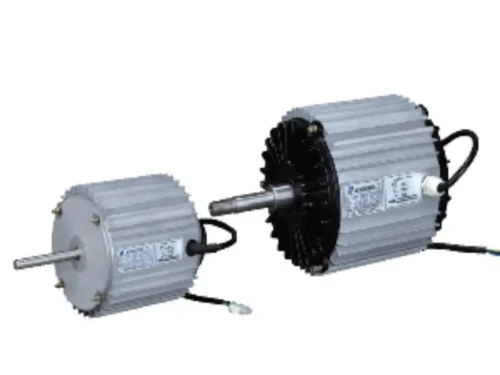

Fan Motor

PERFan motors are engineered for high-performance ventilation in HVAC systems, delivering reliable, continuous operation for both commercial and industrial environments. As part of the E Series, they are available in three-phase and single-phase capacitor-run designs, specifically optimised for energy efficiency, long service life, and durability. Built to meet Australian and international standards, PERFan motors ensure consistent performance where it matters most.   Motor Features
  • Frame: IEC-compliant extruded aluminum housing, supporting 0.43–2.68 hp (0.32–2.0 kW).
  • Poles: 2/4 poles, with speeds of 900–1380 rpm (50 Hz) or 1080–1725 rpm (60 Hz).
  • Mounting: PAD installation, adjustable for precise fan alignment.
  • Voltage: 220–240V or 220–240/380–415V, currents 1.3–6.5A.
  • IP Rating: IP55, protecting against dust and water jets.
  • Insulation Rating: Class F for reliable performance.
  • Duty: S1 continuous duty for uninterrupted operation.
  • Enclosure: TEFC or TENV designs for optimal cooling.
  • Cooling Method: IC418 with Vacuum Pressure Impregnated (VPI) windings.
  • Customization: Tailored outputs (e.g., 0.75–2.0 hp) and dimensions (D 127–188 mm, L 252–306 mm).
  PERFan motors deliver dependable, customizable ventilation solutions for Australian industries. Contact us for tailored support.
Quick View
Quick View

Hydaulic Power Unit Motors

Perdurus CF series motors are designed for coffee grinder machine, the increased starting torque ensures the smooth start-up in continuous operation.The motors are reliable, durable, high efficient, flexible and safe, which are suitable for household and commercial use coffee grinder machines.OEM/ODM motors are available to meet every demand of different applications.   Product Range Series Name :CF Phase:Three Phase/Single Phase Material of Frame:Aluminum / Rolled Steel / No Frame Power Range:0.06-37kW Speed:750-3600rpm Poles:2 / 4 / 6 / 8 poles IP Address:Customization Insulation Class:F
Quick View
Quick View

Stator and Rotor Lamination

Rotor & Stator Solutions from Perdurus deliver high-quality laminations engineered for submersible pump applications across Australian industries. Designed to maximise motor efficiency, reliability, and durability, these components are ideal for water supply, irrigation, and mining pumps, where dependable performance under submerged conditions is critical. Certified to international standards, Perdurus rotor and stator solutions support the growing demand for energy-efficient and long-lasting submersible pump systems in Australia’s diverse operating environments.   Product Features • Manufacturing: High-speed stamping and rocking stamping techniques, producing precise laminations according to customer drawings. • Materials: Premium electrical steel, optimized for submersible pump motors to withstand corrosion and submersion. • Compatibility: Customizable to fit various frame sizes, including IEC and NEMA standards, up to 100 frame size. • Certifications: CE, CSA, UL, ISO 9001:2015, ISO 14001:2015, ISO 45001:2015, ensuring quality and safety for submersible applications. • Performance: Engineered for high efficiency and durability, supporting outputs up to 3 kW (4 hp), suitable for demanding pump operations. • Customization: Tailored designs available to meet specific submersible pump requirements, including thickness and slot configurations.   Rotor & Stator Solutions provide reliable, custom-engineered components to enhance the performance of submersible pumps in Australia. Contact us for tailored support or technical assistance.
