PER Stainless – The Hygienic Motor Solution
PER Stainless motors are engineered for hygienic environments such as food processing, pharmaceuticals, and other applications requiring strict cleanliness and frequent washdowns. Fully compliant with EHEDG guidelines, FDA standards, HACCP requirements, and Australia’s MEPS, they are designed to support Clean-In-Place (CIP) and Sterilization-In-Place (SIP) processes. With their durable stainless-steel construction, these motors help reduce contamination risks, minimise downtime, and deliver reliable performance in critical operations.Product Range
- Frame: IEC 56-100, NEMA 56C-184TC, output range 0.08 – 5 hp, AISI 304 or 316L stainless steel for corrosion resistance.
- Poles: 2/4 poles for versatile speed options.
- Mounting: IM B3, B5, B14, B34 for flexible installation.
- Voltage: 230/400V, 208-230/460V, 575V at 50/60 Hz.
- IP Rating: IP69K / IP56, resisting high-pressure water jets (100 bar, 80°C) or dust and moisture.
- Insulation Rating: Class F for reliable performance.
- Duty: S1 continuous, suitable for inverter duty with wide torque range.
- Stainless Steel: 304 or 316L grades with excellent anti-corrosion properties.
- IE4 Efficiency (Pn ≥ 0.75 kW): Super Premium Efficiency up to 95%+ per IEC 60034-30-1:2014.
- Enclosure: Totally Enclosed Fan-Cooled (TEFC) or Totally Enclosed Non-Ventilated (TENV) for hygienic, quiet operation.
- Inverter Duty: Supports variable speed control.
- Design: Weld-free pipe housing, NDE terminal box, easy to wash.
- Coating: Stator and rotor with anti-oxidant paint.
- Temperature: Low surface heat for safe handling.
- Surface: Smooth (Ra < 0.8 µm), EHEDG-compliant, bacterial-resistant.
- Properties: Excellent anti-corrosion and hygienic performance with Viton O-rings and laser-engraved ratings.
- Certification: CE, CSA, ensuring compliance with international safety and performance standards.
PM Series - Permanent Magnet Synchronous Motors (IEC Dimension)
- Next-Generation Efficiency and Performance for Industrial Applications
- Perdurus PM Series Motors represent the forefront of motor technology, delivering super-premium efficiency (IE4 / IE5) with a compact, robust design. These motors are engineered for industrial applications requiring high performance, reliability, and energy savings.
- Super-Premium Efficiency: Achieve IE4 / IE5 levels, reducing energy consumption and operating costs.
- Compact and Robust Design: Space-efficient motor structure ideal for modern industrial installations.
- IEC Standard Compliance: All motors are designed and dimensioned according to IEC standards for easy integration.
- High Protection Class: IP54 / IP55 rating ensures reliable operation in harsh environments.
- Thermal Reliability: Insulation class F for long-lasting performance under heavy loads.
- Wide Power Range: Available up to 37 kW and frame size 200, covering most industrial requirements.
- Applications
- Ideal for:
- Fan, pump, and blower systems
- Industrial automation
- Material handling equipment
- HVAC systems
- Any application where high efficiency and reliability are critical
- Installation Dimensions
- The PM Series is available in IMB3, IMB5, and IMB14 mounting configurations with full IEC-compliant dimensions. Our detailed drawings ensure easy integration into your existing systems.
- (Include a simplified diagram similar to the uploaded image, highlighting IMB3, IMB5, and IMB14)
- Why Choose Perdurus PM Motors?
- Energy Savings: Lower electricity bills and carbon footprint.
- Durable Performance: Built to operate reliably in tough industrial environments.
- Easy Integration: Standardized dimensions allow seamless replacement or new installation.
- Advanced Control Options: Can be paired with modern drives for precision control.
Single Phase - PML
Perdurus IEC PerAlloy single-phase motors are designed for reliability, efficiency, and durability, making them suitable for a wide range of general-purpose applications such as fans, pumps, compressors, and light machinery. With robust construction and flexible mounting options, they are built to minimize downtime and reduce operating costs while delivering consistent performance.
Key Features:
- Housing: High-quality alloy housing for long-lasting strength and durability.
- Frame Sizes: IEC frames up to 112.
- Power Range: 0.18 kW – 4 kW (Single Phase).
- Poles: Available in 2, 4, and 6 pole configurations.
- IP Rating: IP55 as standard, with IP66 available on request.
- Operating Conditions: Rated for ambient temperatures up to 40°C.
- Power Supply: 240 V, Single Phase, 50 Hz. Designed to handle voltage variations of ±10% and frequency variations of ±5% in line with IEC standards.
- Terminal Box: Rotatable terminal box with 90° positions, mountable on the top, left, or right side for flexible installation.
- Efficiency: Tested in accordance with IEC 60034-2 standards. High-efficiency designs are available.
- Mounting Flexibility: Multi-mounting design with removable feet for maximum flexibility and easy reconfiguration.
- Insulation: Vacuum Pressure Impregnated (VPI) windings for enhanced insulation strength and reliability.
- Standards & Certification: Fully compliant with IEC standards and MEPS requirements; certified CE and CCC.
Smoke Spill Motor
Ensuring safety in industrial and commercial environments is a critical concern for building designers, facility managers, and business owners. Perdurus Smoke Spill Motors are engineered to maintain air circulation in enclosed spaces and provide reliable operation in emergency situations, helping to extract smoke and heat rapidly while delaying fire propagation, allowing safe evacuation.
Key Features:
- Construction: High-quality alloy frame for durability and reliable performance under high-temperature conditions.
- Power & Frames: Currently available up to 30 kW and IEC 200 frame. Cast iron motors up to 110 kW will be added in the future.
- Poles & Speed: Available in 2 and 4 pole configurations.Insulation & Thermal Protection: Class F or Class H insulation provides enhanced thermal protection, capable of withstanding temperatures up to 200°C (Class F) or 300°C (Class H) for 120 minutes.
- IP Rating: IP55 as standard for protection against dust and water ingress.
- Terminal Box: Top-mounted or remote terminal box with flexible cable connection options.
- Efficiency: Compliant with IEC60034 frame allocation standards and IEC60034-30-1 (IE3) efficiency level.
- Applications: Ideal for commercial buildings, factories, warehouses, parking garages, tunnels, and other areas with high occupant concentration.

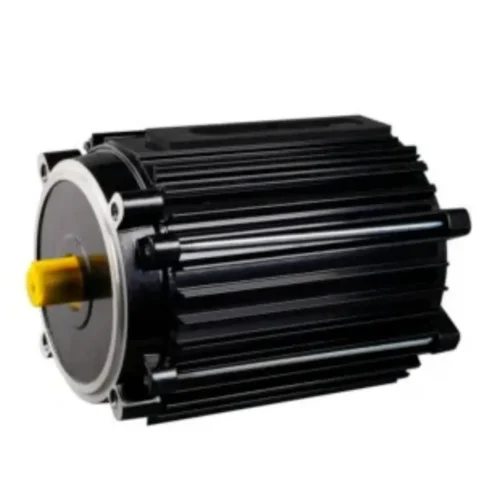

Stator and Rotor Lamination
Rotor & Stator Solutions from Perdurus deliver high-quality laminations engineered for submersible pump applications across Australian industries. Designed to maximise motor efficiency, reliability, and durability, these components are ideal for water supply, irrigation, and mining pumps, where dependable performance under submerged conditions is critical. Certified to international standards, Perdurus rotor and stator solutions support the growing demand for energy-efficient and long-lasting submersible pump systems in Australia’s diverse operating environments.
Product Features
• Manufacturing: High-speed stamping and rocking stamping techniques, producing precise laminations according to customer drawings.
• Materials: Premium electrical steel, optimized for submersible pump motors to withstand corrosion and submersion.
• Compatibility: Customizable to fit various frame sizes, including IEC and NEMA standards, up to 100 frame size.
• Certifications: CE, CSA, UL, ISO 9001:2015, ISO 14001:2015, ISO 45001:2015, ensuring quality and safety for submersible applications.
• Performance: Engineered for high efficiency and durability, supporting outputs up to 3 kW (4 hp), suitable for demanding pump operations.
• Customization: Tailored designs available to meet specific submersible pump requirements, including thickness and slot configurations.
Rotor & Stator Solutions provide reliable, custom-engineered components to enhance the performance of submersible pumps in Australia. Contact us for tailored support or technical assistance.
Three Phase - PME
Perdurus IEC PerAlloy motors are built to meet IEC 60034 frame allocation standards and are engineered for reliability, durability, and efficiency. They are the ideal choice for a wide range of general-purpose applications, including fans, pumps, compressors, gearboxes, and more. Designed to reduce downtime and operating costs, PerAlloy motors deliver consistent performance across industries.
Key Features:
- Housing: Robust high-quality alloy housing ensures long-lasting strength and durability.
- Frame Sizes: IEC frames up to 200.
- Power Range: 0.06 kW – 37 kW (3 Phase).
- Poles: Available in 2, 4, 6, and 8 pole configurations.
- IP Rating: IP55 as standard, with IP66 available on request.
- Operating Conditions: Rated for ambient temperatures up to 40°C; 50°C designs available from factory.
- Power Supply: 415 V, 3 Phase, 50 Hz. Designed to handle voltage variations of ±10% and frequency variations of ±5% in line with IEC standards.
- Terminal Box: Rotatable terminal box (90° positions) mountable on top, left, or right side for flexible installation.
- Efficiency: Tested in accordance with IEC 60034-2 standards. Efficiency levels up to IE4 available in aluminium frames, from size 63 to 200.
- Mounting Flexibility: Multi-mounting design with removable feet for maximum flexibility and easy reconfiguration.
- Insulation: Vacuum Pressure Impregnated (VPI) windings for enhanced reliability and extended motor life.
- Standards & Certification: Fully compliant with IEC standards, MEPS; certified CE and CCC.
